ZnO/Metallic/ZnO (Metallic = Ag, Pt, Au) Movies for Vitality-saving in Home windows Software


Rutherford Backscattering Evaluation

Determine 1 depicts the two MeV RBS spectra of ZnO/Metallic/ZnO samples for various metals (Ag, Au, Pt). In accordance with the form of the diagrams simulated by the SIMNRA software program, they match nicely with the experimental knowledge. Because of this, the thickness and focus of the fabric will be decided appropriately. These curves present the posterior scattering power of the incident particles for all samples. The channel area incorporates a peak comparable to the Zn, Au, Ag, and Pt metals, at 500–600 and 600–700 nm, respectively. The valley depth between the Zn-Au and Zn-Pt alerts is equal, and the valley between the Zn-Ag alerts decreases, whereas the interlayer penetration will increase20, The thickness is calculated because the monolayer (10 .)15 atom/cm2), comparable to a regional atomic density and assuming a uniform layer distribution. Within the case that we take into account the nominal stoichiometry of the recognized atomic density (5.9 × 10.)22 atom/cm3 For Au, 5.8 × 1022 atom/cm3 for Ag, and 6.6 × 1022 atom/cm3 For Pt), the thickness will be simply obtained in nm scale. The sector densities of Au, Ag and Pt metals on the center layer obtained from RBS evaluation are 25.5, 32.2 and 27.31 (×10)15 atom/cm2), respectively. Consequently, assuming that the layer is uniform, S. The thicknesses of the Au, Ag and Pt metallic layers in1s2 And3 The samples are 4.08, 5.44 and 4.09 nm, respectively.21,

determine 1
figure 1

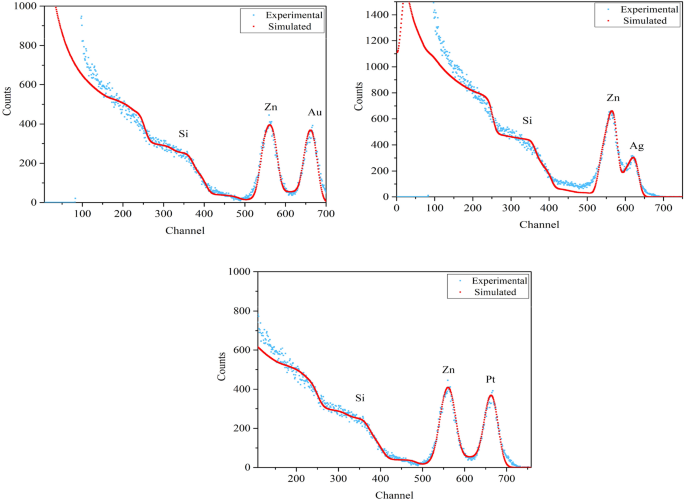

RBS spectra of samples (experimental and simulation).

FESEM cross-section

Determine 2 exhibits cross-section FESEM photos of all samples. Below the identical experimental circumstances, S1s2And3 The thicknesses of the samples are discovered to be 77, 61 and 63 nm, respectively.

Determine 2
Figure 2

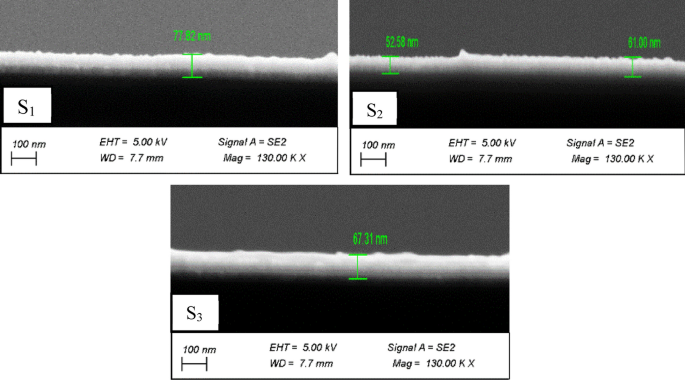

FESEM cross part diagram of the samples.

sheet resistance calculation

The sheet resistance of all samples is measured utilizing a four-point probe, proven in Desk 1. The sheet resistance of the samples below the identical circumstances and coating period signifies that the resistance of the ZnO single layer pattern could be very excessive. The presence of a center layer of metallic lowers {the electrical} resistance. As proven in its strip construction, these constructions will be considered connecting metals to semiconductors. Within the research of the construction of ZnO/metallic, no barrier is discovered to switch electrons from the metallic to the semiconductor after bonding; Electrons are simply transferred from the metallic layer to ZnO and vice versa. On this case, the density of the cost carriers will increase because of the injection of electrons from the metallic into the semiconductor or vice versa.20,22, The sheet resistance of samples with Ag metallic is greater than that of samples coated with Au and Pt metals; Whereas in most articles on three-layer constructions, Ag metallic was used within the center layer, and low resistance is famous. Ag grows within the Vollmer–Weber (island) mode on oxide substrates. The upper resistance within the pattern with Ag metallic most likely outcomes from the presence of particular person islands on the Ag metallic floor, and for the disappearance and cohesion of those islands, extra Ag coating layer is required. In accordance with the outcomes obtained in our earlier article23At thicknesses beneath 10 nm, Ag is deposited as a closed island. This means that having a three-layer construction with totally different metals requires extra Ag than Au and Pt, which is less expensive.

Desk 1. Sheet resistance of samples.

Calculation of transmittance, reflectance and common transmittance

The transmission and reflectance spectra of the samples, offered at wavelengths of 190–2700 nm, are proven in Determine 3. In Determine 3a, which offers with the transmittance diagram of the samples, the peaks of samples with totally different metals are situated at totally different wavelengths; in order that S. peaks of1s2And3 are at 626, 400 and 380 nm and have a transmittance of 71, 72 and 57%, respectively.

Determine 3
Figure 3

Transmittance and reflection spectra.

Because of the significance of transmission within the vary of 400–800 nm in business and its higher comparability for samples of various metals, the transmission coefficient (T)av) is calculated for every pattern seen (T.)vis), photo voltaic (tphoto voltaic), and NIR (T.)Nir) space is proven in Desk 2.

Desk 2 Common transmittance and reflectance of samples within the seen, photo voltaic and NIR areas.

The transmission coefficient is obtained within the following:

$$ T_{av} = frac{{int {T(lambda )V(lambda )dlambda } }}{{int {V(lambda )dlambda } }}, $$


the place V(λ) and T(λ) are the luminous spectral effectivity and transmittance of the samples, respectively.19,23,

Teavis S. values ​​of1s2And3 The samples are 68.95, 58.76 and 47.54%, respectively; Highest worth S. belongs to1 sample.

The comparability of the reflection within the IR area for the three-layer ZnO/metallic/ZnO electrodes contemplating totally different metals in the identical fabrication course of has not been investigated. Infrared reflectivity is without doubt one of the most vital parameters of electrodes to be used in business. On this research, the comparability of the reflectance of those electrodes within the IR area was investigated for the primary time.

In accordance with Determine 3B, S. reflection of1s2And3 Samples within the near-infrared area are equal to 19, 35 and 36%, respectively, at a wavelength of 1700 nm. The ZnO single layer has the bottom reflectivity on this vary. Desk 2 exhibits the common reflectance within the photo voltaic and near-infrared areas, calculated utilizing Eq. (1) with the distinction that the quantity of reflectance is changed by the quantity of transmission within the photo voltaic and infrared areas.

Calculation of FOM Parameters

Each conductivity and transparency parameters are essential within the business. For a greater comparability of the properties of the metal-oxide/metallic/metal-oxide three-layer electrode, the determine of the qualification parameter is used, which will be calculated from the next equation24,

$$ FOM = frac{{T_{av}^{10} }}{{R_{sh} }}. ,


The upper the quantity of FOM, the extra clear the conductive electrode is. The FOM values ​​of the samples are proven in Desk 3. In accordance with the talked about values, the utmost quantity of FOM belongs to S.1 5.1 × 10 . pattern with a worth of-4 I-1,

Desk 3 Emission, FOM and U-values ​​of all samples.

calculation of emissions

Clear conductive electrodes with low emissivity traits are a razor-thin, colorless, non-toxic coating utilized in window glass to extend power effectivity. Such home windows are remarkably protected and have gotten standardized by way of power effectivity within the fashionable dwelling. Low-E home windows stop infrared mild from penetrating the glass from the surface. As well as, these home windows maintain heating/cooling power. Emission R. resting onMr. and is obtainable within the wavelength vary of 780-2700 nm utilizing the next equation:6,19,20

$$ varepsilon_{1} = 0.0129R_{sh} – 6.7 occasions 10^{ – 5} R_{sh}^{2} . ,


Moreover, >3 µm and R. For samples with wavelengths equal toMr. zoo0 Additionally obtainable as follows:

$$ varepsilon_{2} = frac{{4R_{sh} }}{{Z_{0} }}, $$


the place Z0 The impedance of the vacuum is (377). The acquired knowledge of emissivity for all samples are proven in Desk 3. The minimal quantity of emission is expounded to S.1 Pattern with a worth of 0.45.

Calculation of bandgap power (ESure,

The absorption coefficient (α) for the direct transition is obtained utilizing the next equation:25,

$$ (alpha hnu )^{2} = A(hv – E_{g} ), $$


the place H and A symbolize the incident radiation power and a continuing, respectively. direct eSure For zero absorption (αhυ = 0) is achieved by extrapolating the linear components of the plots. ESure The transformations for the ZnO/metallic/ZnO multilayer system are offered in Fig. 4. In accordance with the outcomes obtained from the calculation of the bandgap power, the power hole of the ZnO pattern is the same as 3.31 eV, which decreases for ZnO/M. /ZnO (M = Au, Ag, and Pt) skinny movie samples. These bandgap adjustments in three-layer constructions with totally different metals are in keeping with transmission adjustments within the seen area, in order that the transmittance of the ZnO single layer was most, and it may be seen that the band hole can be most for this pattern. As well as, S. communication of1 pattern s. is greater than2 pattern, and S. bandgap of3 pattern is minimal26,

Determine 4
Figure 4

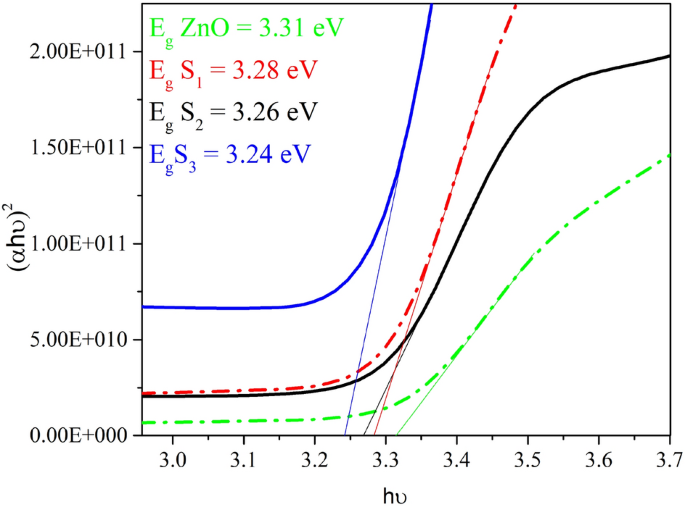

Optical bandgap power of all samples.

warmth outcome

To check the heating results of the samples, their electro-thermal conduct is investigated and proven in Fig. 5. For this goal, silver contacts have been coated on either side of the samples by an electron beam evaporator. Then, by making use of a set voltage for 300 s, the utmost temperature of the warmth produced between the contacts was measured by a thermal digicam. In accordance with Determine 5, S. temperature of1 The pattern, with a voltage change of 4 to 12 V, exhibits a pointy enhance in temperature from 35 to 120 °C, whereas this temperature enhance is discovered to be much less for S.3 pattern (from 30 to 80 °C), and s2 The pattern didn’t present any temperature change with rising voltage.

Determine 5
Figure 5

The temperature of the ZnO/metallic/ZnO multilayer-based skinny movie heater based mostly on the enter DC voltage.

Right here, the warmth loss because of conduction and radiation from behind will be uncared for as a result of the glass substrate is just not thermal conductor. Subsequently, the most important route of warmth loss, which is air convection, will be obtained in line with the next formulation:27,

$$ start {collected} Delta Q_{g} = PDelta t = frac{{V^{2}}}{R}Delta t = Q_{conv} = h_{conv} A_{conv} (t_{s} – t_{i} ) hfill t_{s} = frac{{V^{2} Delta t}}{{Rh_{conv} A_{conv} }} + t_{i }. hfill finish{acquire} $$


WhySure t, h. The warmth produced at energy P for a time period isRupa is the convective warmth switch coefficient, aRupa is the floor space, and ts and TI are the saturation and preliminary temperature, respectively. As one may guess, with enhance in voltage and reduce in resistance, the saturation temperature will increase. S1 The pattern has low sheet resistance and excessive h . IsRupa S. In comparison with3 pattern, and for that reason, it may be seen in Determine 5 that S. quantity of warmth manufacturing in1 Pattern at a particular voltage S. will increase considerably in comparison with3 sample. S. temperature of2 The pattern, most likely due to its excessive resistance, didn’t drop beneath 4 to 12 V.

thermal efficiency

To estimate the quantity of warmth passing via the fabric, tvisRvisTeaphoto voltaicRphoto voltaicTeaNirRNir and the emission values ​​of the samples ought to be calculated as28, Teavis and rvis 400 < < 800 nm, t. The charges of transmission and reflection within the area ofphoto voltaicRphoto voltaic 250 < < 2500 nm, and T. The charges of transmittance and reflection within the area ofNirRNir are the transmittance and reflection charges within the area of 780 < < 2500 nm; All of that are proven in Desk 2. On this research, to calculate the U-value of every pattern, utilizing Window 7.8 software program, we simulated a double-glazed system consisting of two layers of glass with a thickness of 4 mm and a niche layer containing Argon is gasoline. The U-values ​​of all samples are listed in Desk 3. Within the absence of a ZnO/metallic/ZnO coating on double-glazed home windows, the U-value is 2.730 W/m2 Of. Nevertheless, after the deposition strategy of the clear conductive electrode coating, the U-value is considerably decreased. S1 (ZnO/Au/ZnO) is lowest within the pattern, and S2 The (ZnO/Ag/ZnO) pattern has the best U-value because of its excessive sheet resistance and excessive emissivity.


Supply hyperlink
